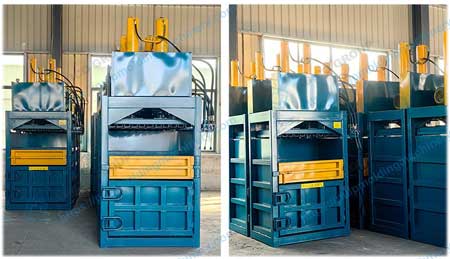

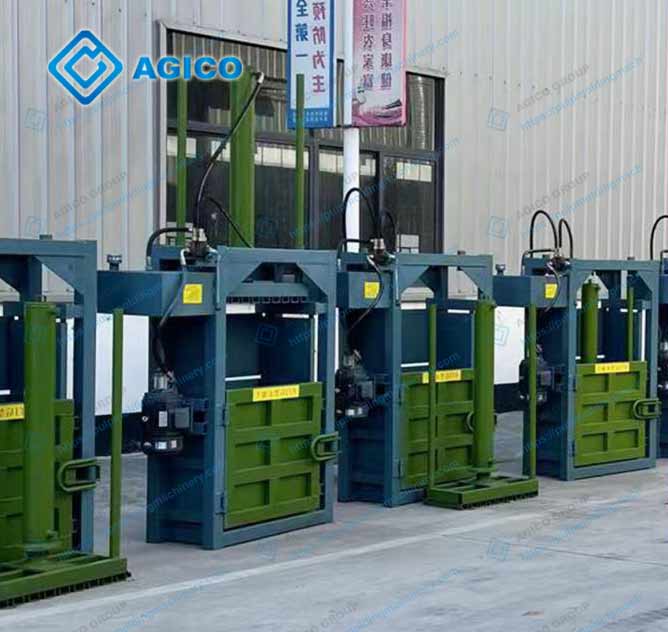

Waste Paper Baler Machine for Sale:
Vertical hydraulic waste paper baler machine from AGICO is designed for efficient compression of light and loose materials such as waste paper and cartons, which can significantly reduce transportation and storage costs.
What Is Waste Paper Baler Machine:
Suitable for waste paper and waste plastic recycling industry, used for packaging waste plastics (ground film, packaging bags, PET bottles, etc.), yellow paper, old books and newspapers and other types of waste paper.
Waste Paper Baler Specification:
- Paper Baler Machine Type: Vertical Hydraulic
- Paper Baler Machine Model (Capacity): 10ton – 120ton;
- Engine: 4kw-22kw;
- Package Size Range: 800*400*800, 1000*600*800, 1200*800*1000
- Total Weight: 400kg – 2000kg
Suitable Raw Materials: Suitable for waste paper and waste plastic recycling industry, used for packaging waste plastics (ground film, packaging bags, PET bottles, etc.), yellow paper, old books and newspapers and other types of waste paper.
(10 – 120 Ton) Paper Baler Machine Model Options:
The required tonnage of the waste paper baler varies depending on the model and size. Generally, a small waste paper baler weighs less than 1 ton, a medium-sized one weighs between 2 and 5 tons. There are even larger balers with a deadweight of up to 19±0.5 tons. Additionally, the pressure requirements of the paper baler also vary based on the type of baling material. The common hydraulic paper baler with a pressure of 30 tons is widely used for compressing and packing various types of waste paper.
Classified by pressure size: 10 tons, 20 tons, 30 tons, 40 tons, 60 tons, 80 tons, 100 tons, 120 tons.
Waste Paper Baler Machine Technical Parameters:
Here are the technical parameters of paper baler machines with different capacities, you can simply choose according to the hydraulic pump capacity and the package size, if you are still confused of choosing the right model, don’t hesitate to contact us now for professional advice from our professional engineers.
| Model | Engine | Hydraulic Cylinder Diameter | Cylinder Stroke(mm) | Oil Pump | Dimension (mm) | Package Size (mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| 10 Ton Single-phase Electricity | 4kw | 115mm | 900 | 316 | 1350*700*2650 | 800*400*800 | 400 |
| 10 Ton Single Cylinder | 7.5kw | 115mm | 900 | 325 | 1350*700*2650 | 800*400*800 | 400 |
| 20 Ton Single Cylinder | 7.5kw | 140mm | 1000 | 325 | 1500*700*2700 | 800*400*800 | 450 |
| 30 Ton Double Cylinder | 11kw | 115mm*2 | 2*900 | 532 | 1700*850*2800 | 1000*600*800 | 600 |
| 40 Ton Double Cylinder | 11kw | 140mm*2 | 2*1000 | 532 | 1700*850*2800 | 1000*600*800 | 700 |
| 60 Ton Double Cylinder | 15kw | 160mm*2 | 2*1000 | 563 | 1700*2200*3000 | 1200*800*1000 | 1300 |
| 80 Ton Double Cylinder | 18.5kw | 180mm*2 | 2*1000 | 563 | 1700*2200*3200 | 1200*800*1000 | 1400 |
| 100 Ton Double Cylinder | 22kw | 180mm*2 | 2*1200 | 563 | 1700*2200*3500 | 1200*800*1000 | 1500 |
| 120 Ton Double Cylinder | 22kw | 200mm*2 | 2*1400 | 563 | 1700*2300*3500 | 1200*800*1000 | 2000 |

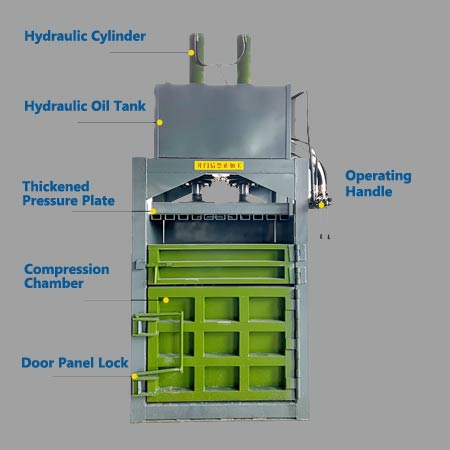

Main Components of Paper Baler Machine

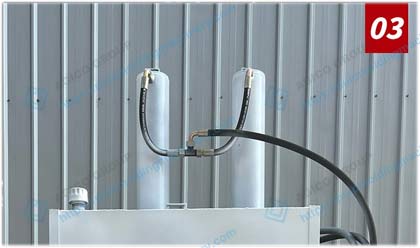

- Hydraulic Cylinder
- Hydraulic Oil Tank
- Operating Handle

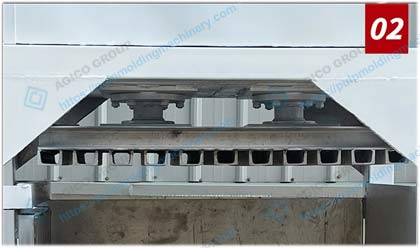

- Thickened Pressure Plate
- Compression Chamber

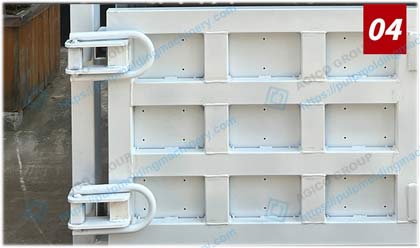

- Door Panel Lock
Functions and Technical Features of Paper Baler Machine
Highly Efficient Compression Capability
- It adopts a hydraulic drive system with a pressure range of 10 tons to 120 tons (30 tons for common models) to meet the needs of waste paper packaging of different scales.
- The rigid pressing plate structure compacts the material quickly, making the bag compact and neat, reducing the volume by more than 70%.
- The four-way strapping slot design supports the threading of wire in a well-shaped pattern, making the strapping firm and not easy to loosen.
Intelligent Operation And Safety Design
One-button electrical control system: easy to operate and no debugging required, supports manual bundling + automatic bag turning functions.
Triple security guarantee:
- 3 breadboards + single-side feeding to prevent misoperation;
- Anti-rebound barb + safety switch;
- Open the safety interlock mechanism.
Energy-saving mode: The pressure plate automatically returns to its original position during non-pressure stroke to avoid high oil pressure and power consumption.
Reliable structure and low maintenance cost:
- The hydraulic system adopts a combination of imported and domestic components , with low noise and stable performance;
- Low failure rate, simple and fast maintenance;
- No foundation reinforcement is required and installation is easy.
Benefits of Paper Baler Machine For Egg Tray Plant
Paper tray production lines (pulp molded products such as egg trays, fruit trays, electronic product liners, industrial packaging, etc.) with waste paper recycle business can build a highly competitive and sustainable circular economy model with significant benefits, stable and low-cost supply of waste paper pulp.
- Self-sufficiency: Recycled waste paper (especially OCC corrugated cardboard, mixed waste paper, office waste paper, etc.) can be directly used as the main raw material for paper tray production – pulp after proper sorting and processing. This greatly reduces the dependence and cost of purchasing virgin pulp or commercial recycled pulp.
- Cost advantage: The intermediate links (selling to packaging stations/paper mills and then buying back pulp boards or pulp) are eliminated, and the raw material cost is significantly reduced by directly using the recycled waste paper.
- Stable supply: Our own recycling channels can provide a relatively stable and controllable source of raw materials, reducing the impact of market waste paper price fluctuations on paper tray production costs.
Where Waste Paper Baler Machines Are Used:
The hydraulic waste paper baler is not only suitable for compressing waste paper, but also for baling other materials: straw, forage, cotton, clothing, straw, plastic, wool, recyclable garbage, waste paper boxes, waste cardboard, yarn, tobacco leaves, woven bags, knitted fleece, hemp, sacks, wool tops, wool balls, cocoons, silk, hops, waste plastic bags, etc. The packs are compact after baling, which can greatly reduce transportation costs. It is the best tool for cotton producing areas, textile enterprises, garment factories, waste material recycling stations and various other light industrial enterprises.
